Stainless Steel Round Hopper Auger Screw Conveyor for Salt

Xinxiang Sanyuantang Machine Co., Ltd.
  • Structure:Inclining Conveyor
  • Material:Stainless Steel
  • Material Feature:Oil Resistant, Heat Resistant, Fire Resistant
  • Application:Chemical Industry, Grain Transport, Mining Transport, Power Plant
  • Condition:New
  • Voltage:220,240,380,400,415,480V

Base Info

  • Model NO.:SYLS-133
  • Transport Package:Standard Export Wooden Case
  • Specification:LS
  • Trademark:Sanyuantang
  • Origin:Xinxiang
  • HS Code:8428399000
  • Production Capacity:According to Different Models

Description

Screw conveyor

100

160

200

250

315

400

Screw diameter(mm)

100

160

200

250

315

400

Screw pitch(mm)

100

160

200

250

315

355

Rotating speed(r/min)

100

120

90

90

75

75

Production capacity   Qφ=0.33(m3/h)

2.2

7.6

11

22

36.4

66.1

Power Pd 1=10m(kw)

1.1

1.5

2.2

2.4

3.2

5.1



Specification only for your reference, size variable as per customer's request.



Screw conveyor features


1.The machine is especially suitable for conveying all kinds of powdery material,also can be used for conveying all kinds of granular or flake materials.
2.Using unique designed stainless steel screw-shaped blade;
3.High conveying capacity,safe and reliable operation,easy to disassemble and clean;
4.Good adaptability and long service life;
5.Good sealing quality and rigidity;
6.It can be customized as custormer requests;
7.It can add vibrator for speed up the feeding speed.

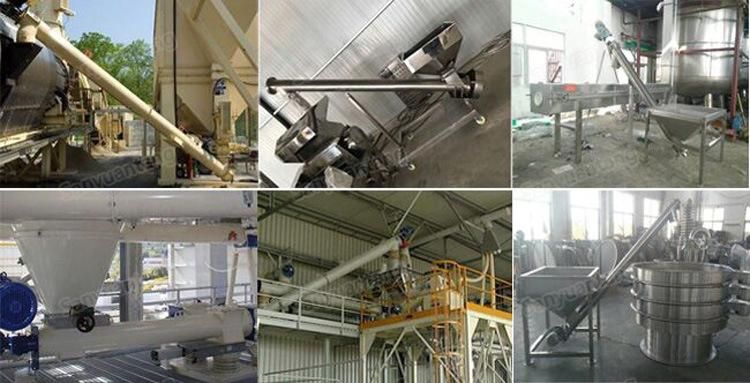

Screw conveyor product pictures


Stainless Steel Round Hopper Auger Screw Conveyor for Salt


Screw conveyors work with many machines

Stainless Steel Round Hopper Auger Screw Conveyor for Salt


Buying Guides


Tell me the following questions,Then I can send you accurate quotation soon.

Material name:_____     Material bulk density: _____t/m3   Water content:____%

Production capacity: _____t/h;

Upstream equipment:_____;

Installation form is horizontal or inclined :________;
If it is inclined.Vertical conveying height:_____  Horizontal conveying distance:_____;

Whether add hopper: ____ (Ps. Yes or No);

If add hopper.The volume of the hopper is          m³;
Material is corrosive or not: ____ (Ps. Yes or No);

Working power supply: _____V ______HZ___Phase.


Note:
We customize conveyors in various specification, so our product introduction and display on alibaba is not final, just for your reference. If you need to order, please send me your specification request or drawing, we shall quote you at the earliest time.
