CE Approved 1500kg Electric Reach Stacker with Reach Distance 500mm

Ningbo Cholift Forklift Co., Ltd.
  • Structure:Material Handling Industry
  • Material:Carbon Steel
  • Material Feature:High Strength
  • Application:Material Handling Industry
  • Condition:New
  • Steering:Electric Power Steering

Base Info

  • Model NO.:QDA-Q
  • Lifting Height:1600mm-5500mm
  • Load Capacity:1000kg, 1500kg,2000kg
  • Battery Charger:110V,220V 50Hz
  • Warranty:1 Years
  • Load Center:600mm
  • Power Source:AC Electric
  • Wheel Type:PU
  • Manufacturer:Ningbo Cholift Forklift Co., Ltd.
  • Machine Color:as Per Customer′s Request
  • Controller:American Curtis AC Controller
  • Dimension(L*W*H):2360*980*2340mm
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Certification:CE, CQC, IAF
  • Transport Package:1PCS,Wooden Pallet
  • Specification:1500kg
  • Trademark:CHOLIFT
  • Origin:Ningbo, China
  • HS Code:84271090
  • Production Capacity:100 Units Per Month

Description

Model No.



QDA12Q/QDA15Q/QDA20Q

Driving model



Electric(battery)

Operating



standing driving

Rated capacity

Q(kg)

1000/1200/1500

Load center

c(mm)

500

Load distance, centre of drive axle to forks

x(mm)

445

Wheelbase

y(mm)

1280/1280/1380

Service weight(with battery)

kg

1750/1950/2190

wheel



PU

wheel demension, front

mm

250x80

wheel demension, rear

mm

210x85

Wheel Number, front/rear (x=driving wheel)



1x/2

Thread, rear

b11(mm)

895

Max. lift height

h3(mm)

2500/3000/3500/4000/4500/5000/5500

Lowered mast height

h1(mm)

1750/2000/2250/2500/2000/2170/2340

Extended Mast Height

h4(mm)

3260/3760/4260/4760/5260/5760/6260

Height, Fork Lowered

h13(mm)

35

Reach distance

l3(mm)

500

overall length

l1(mm)

2260/2260/2360

Overall width

b1(mm)

980

Forks size

s/e/l(mm)

100/35/1070

Fork width

b5(mm)

200-680

Ground clearance

m2(mm)

50-110

Aisle width, with pallet 1000x1200 crossswise

As(mm)

2460

Aisle width, with pallet  800x1200 lengthwise

As(mm)

2560

Turning radius

wa(mm)

1500/1500/1600

Max.gradient, laden/unladen

%

5./8

Travel brake



electromagnetic brake

Battery voltage / rated capacity

v/Ah

24/210 24/210 24/270

Battery Weight

kg

200/200/260

Steering



electric power steering

Noise level at operator's ear, accofring to DIN12053

dB(A)

<70



CE Approved 1500kg Electric Reach Stacker with Reach Distance 500mm



CE Approved 1500kg Electric Reach Stacker with Reach Distance 500mm

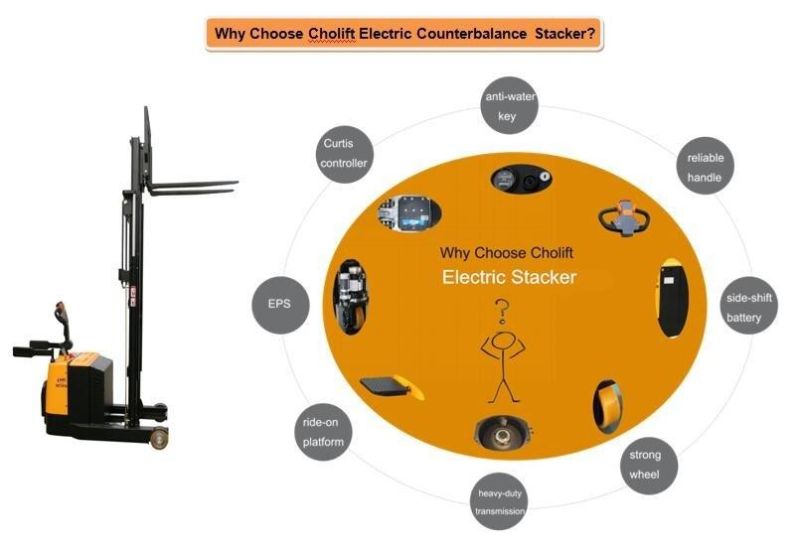

 Good Performance




1) AC drive system gives precise control, longer battery life;



2) Aluminum cover, good heat dissipation for longer service life.



3) The latest AC controller, reliable quality, excellent performance, with regenerative braking.



4) Top-class hydraulic, low noise, low vibration, good sealing to ensure smooth and reliable decline.



5) Precision electronic limit switches.



 Easy Maitenance


6) AC drive motor, no carbon brushes, reducing maintenance costs. Vertical drive motor make the inspection and repair more convenient, which performance much better than the transverse motor.



7) The design of integrated micro-switches, easy for replacement .



8) Cover easy to open, convenient to add distilled water or electrolyte of the battery.



Safe & Reliable



9) Emergency reverse switch



10) Emergency power-off disconnect



11) Foldable pedal, skid-proof, shock absorption, reducing the operator's fatigue;
