Heavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat Soybean

Zhengzhou Syoung Machinery Co., Ltd.
  • After-sales Service:24hours Online
  • Warranty:12months
  • Structure:Chain Conveyor
  • Material:Stainless Steel
  • Material Feature:Oil Resistant, Heat Resistant, Fire Resistant
  • Application:Chemical Industry, Grain Transport, Mining Transport, Power Plant, Food Industry,Medicine,Plastic Industry

Base Info

  • Model NO.:SYBE bucket elevator conveyor
  • Condition:New
  • Shape:Z-Shape
  • Capacity:2-3.5m3,H,4-6m3,H,6.5-8m3,H,8.5-12m3,H
  • Elevating Height:2-10 Meters
  • Bucket Volume:1.0L,1.8L,3.8L,6.5L
  • Bucket Size:1.8L(416*146*63mm)
  • Frame Material:Stainless Steel304,Carbon Steel
  • Bucket Material:Food Grade PP,ABS,SUS304
  • Power:0.75-3kw
  • Max Handled Material Size:50 mm * 50 mm
  • Driven Shaft Rotation Speed:10 R,Min-80 R,Min
  • Hopper Size:650*650*340mm
  • Transportation Direction:Vertical
  • Transport Package:Plywood Case
  • Specification:Customized
  • Origin:China
  • Production Capacity:1000sets,Year

Description

Basic Info.

Model NO. SYBE bucket elevator conveyor Condition New Shape Z-Shape Capacity 2-3.5m3/H,4-6m3/H,6.5-8m3/H,8.5-12m3/H Elevating Height 2-10 Meters Bucket Volume 1.0L/1.8L/3.8L/6.5L Bucket Size 1.8L(416*146*63mm) Frame Material Stainless Steel304/Carbon Steel Bucket Material Food Grade PP/ABS/SUS304 Power 0.75-3kw Max Handled Material Size 50 mm * 50 mm Driven Shaft Rotation Speed 10 R/Min-80 R/Min Hopper Size 650*650*340mm Transportation Direction Vertical Transport Package Plywood Case Specification Customized Origin China Production Capacity 1000sets/Year

Product Description

heavy load capacity 3-5t/h V-bucket conveyor for Wheat Soybean
heavy load capacity 3-5t/h V-bucket conveyor for Wheat Soybean
heavy load capacity 3-5t/h V-bucket conveyor for Wheat Soybean

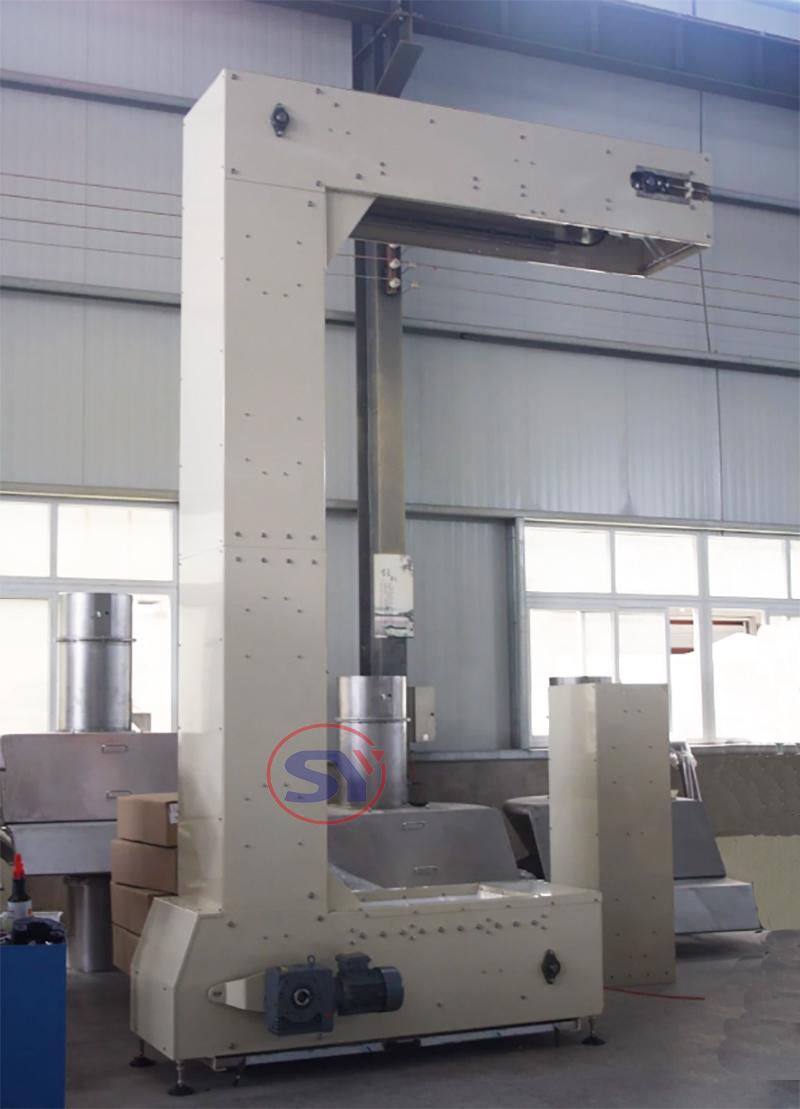

Z vertical bucket elevator conveyor Brief Introduction
This Z shape bucket elavator/conveyor is suitable for conveying and elevating powder, small granular and Small block material. Also it can lift all kinds of fragile or unbreakable material, such as potato chips,fry shrimp, hardware, medicine etc.
Heavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat Soybean
vertical bucket elevator conveyor Industries:
Used for conveying material in food, grain and oil, medical and feed processing industries.

Z vertical bucket elevator conveyor Parameters
ModelSYBE bucket elevator
Bucket Volume1.0L/1.8L/3.8L/6.5L
Frame materialStainless steel304/carbon steel
Bucket material Food grade PP/ABS/SUS304
Capacity2-3.5M3/h,4-6M3/h,6.5-8M3/h,8.5-12m3/h
Total Height 3896MM(1.8L)
Outlet Height3256MM(1.8L)
Voltage AC220V,Single Phase or AC380V,Single Phase,50Hz
Power0.75-3Kw

Z vertical bucket elevator conveyor more details.
1,Z type and C type conveyor can be customized.
   Different numbers inlets and discharge outlets can be customized.

Heavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat Soybean2, High quality food grade SUS304 material structure and parts.
3, High quality food grade Plastic bucket and SUS304 bucket for choice.
4, Standard discharge outlet and Non-standard outlet can be choosen.
Heavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat Soybean
Z vertical bucket elevator conveyor Product features:
1. Economy: The bucket is designed into wide shape, which makes materials go through
smoothly to save cost better.
The vertical transportation saves the ground area and increase work space so that it improves the transmission efficiency;
2. Environmental protection: This machine is made by stainless steel, which is safety and healthy.
3. Energy saving: this machine has the features of firm structure, simple operation and less energy consumption.
4. Operation: Elevating material to a certain height then conveying to the specified position horizontally.


Z vertical elevator bucket conveyor more photos:
Heavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanHeavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanHeavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanHeavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanHeavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanHeavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanHeavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat Soybean
Z vertical bucket elevator conveyor Packing&Shipping
:

1,Generally packed in Plywood case or non pack in container.
2,Shipment within 10~20 working days after the advance/full payment.

Heavy Load Capacity 3-5t/H Vertical V-Bucket Conveyor for Wheat SoybeanFAQ:
1.Who We Are?
Zhengzhou Syoung Machinery Co.,Ltd combines designing,manufacturing and marketing conveying system for many years and has been proved to be worldwide customers, welcome in conveying industry.

2.Why Choose Us?
Novel designing concept,perfect conveyors in both quality and shape!
Customized conveyor solutions at competitive price!
Best on-time delivery, detailed installation and debugging instructions!

3.Could you quote me your standard conveyor?
All bucket conveyors is non-standard equipment, please let me know below information to offer you the best price.
1)What material will be handled?
2)The discharge height you need?
3)Sstainless steel or carbon steel conveyor?

We also customize as your special requirements, such as adjustable speed etc.
