Conveyor & Parts

Polyurethane Conveyor Primary Belt Cleaner and Scraper

JIAOZUO DEBON TECHNOLOGY CO., LTD.
  • Item Name:Polyurethane Conveyor Primary Belt Cleaner and SCR
  • Composition:Polyurethane Blade, Steel Pipe, Spring Tensioner
  • Usage:Conveyor Belt Cleaning System
  • Function:Clean Residual Carryback, Minimize Maintenance,
  • Description:Keep Your Conveyors Running Efficiently and Consis
  • Feature:Durable, Wear Resistant, Easy Installation

Base Info

  • Model NO.:DB-HPU
  • Certification:ISO CE SGS Safety Certificate of Approval for Mine
  • Mounted:Conveyor Head Pulley, 100mm From Head Pulley
  • Material Humidity:<15%
  • Spring Tensioner:Stainless Steel
  • Temperature:-40~90c
  • PU Belt Cleaner Type:Primary, Secondary, Return Belt Scraper
  • Advantage:23 Year Manufacturer, 11 Year Exporter
  • Transport Package:Pallet, Plywood Case, Crated, Wooden Box, etc.
  • Specification:Belt width: 450mm~2400mm
  • Trademark:Jiaozuo Debon
  • Origin:Jiaozuo China(Mainland)
  • HS Code:8431390000
  • Production Capacity:5000 Set Per Month

Description

Basic Info.

Model NO. DB-HPU Certification ISO CE SGS Safety Certificate of Approval for Mine Mounted Conveyor Head Pulley, 100mm From Head Pulley Material Humidity <15% Spring Tensioner Stainless Steel Temperature -40~90c PU Belt Cleaner Type Primary, Secondary, Return Belt Scraper Advantage 23 Year Manufacturer, 11 Year Exporter Transport Package Pallet, Plywood Case, Crated, Wooden Box, etc. Specification Belt width: 450mm~2400mm Trademark Jiaozuo Debon Origin Jiaozuo China(Mainland) HS Code 8431390000 Production Capacity 5000 Set Per Month

Product Description

Our Advantage:

We are professional manufacturer of belt conveyor components and related products. We produce various kinds of belt cleaner, belt sealing skirting, pulley lagging, ceramic rubber liner,etc, to meet different applications, custom size and structure are available.

We will be your reliable partner and supplier.
1. Over 20 years experience in wear products and conveyor accessories.
2. Over 10 years experience in exporting, UK, France, Chile, Canada, USA, Finland, Australia, Russia, Indonesia, Thailand, etc.
3. SGS audited supplier.
4. ISO9001:2015 certified factory.
5. Strict QC/QA makes sure high quality and consistency.





Product Description:



Polyurethane Conveyor Primary Belt Cleaner and scraper

Primary belt cleaner conveyor cleaning are an essential part of any conveyor system, which are installed on the head pulley to provide effective cleaning.

Wear-resistant polyurethane blade doesn't damage the belt and extend belt life.

Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps,the scraper will follow up automatically to ensure good contact.
Polyurethane Conveyor Primary Belt Cleaner and Scraper


Primary belt cleaner is installed on conveyor head pulley or discharge pulley, below the material flow to remove large pieces of material -typically about 70% of intial carryback.

Debon polyurethane blade primary belt cleaners are available in a variety of widths and blade types that tackle even the toughest materials.

Our products are manufactured with the highest-quality polyurethane so they are durable and rugged. The belt cleaners have a sturdy urethane blade that provides effective removal of material from belt conveyors handling coal, cement, mining, ore or other bulk materials.

Mining Primary Polyurethane Belt Cleaner Conveyor Cleaning: Heavy-duty polyurethane primary belt cleaner and premium polyurethane primary belt cleaner.
Polyurethane Conveyor Primary Belt Cleaner and Scraper
Specification: Polyurethane Conveyor Primary Belt Cleaner:

Polyurethane Conveyor Primary Belt Cleaner and Scraper

Polyurethane Conveyor Primary Belt Cleaner and Scraper


Benefits and Features: Polyurethane Conveyor Primary Belt Cleaner:

1. Excellent Performance --blade design is available in one-piece blade or segmented blades that can be changed for the optimum in a blade coverage across the belt's material carry path for better cleaning efficiency.
2. Advanced Composites - blade is made of urethane composites, provides belt cleaner blades that can handle the  toughest environments; Aggregate, Cement, Coal, Mine,Gypsum, Potash, Pulp and Paper and Coal industries.
3. Spring Tensioner -  maintains constant tension throughout the life of the blade.

Polyurethane Conveyor Primary Belt Cleaner and Scraper



Related Products:

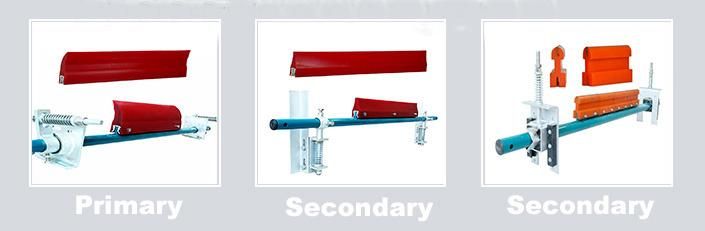

Types of belt conveyor cleaners:
Primary belt scraper to remove big stuff / eliminated carryback.
Secondary pu belt cleaner to scrape materials left on the head pulley.
V plough belt scraper to scrape inside of belt.
Conveyor belt brush cleaner to clean dry and fine material.

Polyurethane Conveyor Primary Belt Cleaner and Scraper




Company Info:

23 Year Manufacturer:
Jiaozuo Debon Technology Co., Ltd., whose former name is Jiaozuo Zhuoer Machinery Manufacturing Co., Ltd, founded in 1996, with 126 employees, including 35 engineers, we are manufacturer specialized in designing and manufacturing Industrial Conveyor Belt Related Products.

11 Year Exportor:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Canada, France, New Zealand, Jordan, South Africa, Indonesia, Thailand, Vietnam, etc., good quality have be approved by our clients.

Our company is certified to ISO 9001:2008 Quality Management System, and rubber lagging products were certified to "SAFETY CERTIFICATE OF APPROVAL FOR MINING PRODUCTS". We are ISO SGS approved manufacturer, SGS audited supplier, ISO9001 certified factory.

Our products are exported to many countries including America, Canada, Australia, Russia, Kazakhstan, Chile Southeast Asia, etc. We also have good performance and market share in domestic market. Our customers prove the high quality and consistency.

Polyurethane Conveyor Primary Belt Cleaner and Scraper


Our main products include: various kinds of Polyurethane Sheets and pads, Rubber Ceramic Pulley Lagging, Conveyor Belt Cleaners, impact bed / bar, Ceramic Rubber Wear Liners For Conveyor Chute, pipe, bin, hopper and other material handing equipment, custom rubber products and polyurethane products, etc. We are ISO SGS approved manufacturer, SGS audited supplier, ISO9001 certified factory.
Polyurethane Conveyor Primary Belt Cleaner and Scraper



Certification:

Polyurethane Conveyor Primary Belt Cleaner and Scraper



Polyurethane Conveyor Primary Belt Cleaner
