• Model NO.：SYRL roller conveyor
• Condition：New
• Loading Capacity：5-500kg
• Driving Form：Electric Motor,Electric Drum
• Transmission Form：Chain Driven
• Roller Width：300,400,500,600,800,1000,1200,1500mm
• Roller Dia：38,50,60,76,89mm
• Roller Pitch：Customized
• Conveyor Length：Customized
• Conveyor Height：Customized
• Layout：Linear Transport,Turning Transport
• Turning Angle：45,90,180degree
• Frame Material：Spraying Carbon Steel,Stainless Steel,Aluminum
• Roller Material：SUS304,Galvanized Carbon Steel
• Speed：Fixed Speed,Variable Speed
• Transport Objects：Box,Bag,Package,Parcel,Tray,Pallet
• Transport Package：Plywood Case
• Specification：Customized
• Origin：China
• Production Capacity：1000sets,Year

Basic Info.

Model NO. SYRL roller conveyor Condition New Loading Capacity 5-500kg Driving Form Electric Motor/Electric Drum Transmission Form Chain Driven Roller Width 300/400/500/600/800/1000/1200/1500mm Roller Dia 38/50/60/76/89mm Roller Pitch Customized Conveyor Length Customized Conveyor Height Customized Layout Linear Transport/Turning Transport Turning Angle 45/90/180degree Frame Material Spraying Carbon Steel/Stainless Steel/Aluminum Roller Material SUS304/Galvanized Carbon Steel Speed Fixed Speed/Variable Speed Transport Objects Box/Bag/Package/Parcel/Tray/Pallet Transport Package Plywood Case Specification Customized Origin China Production Capacity 1000sets/Year

Product Description

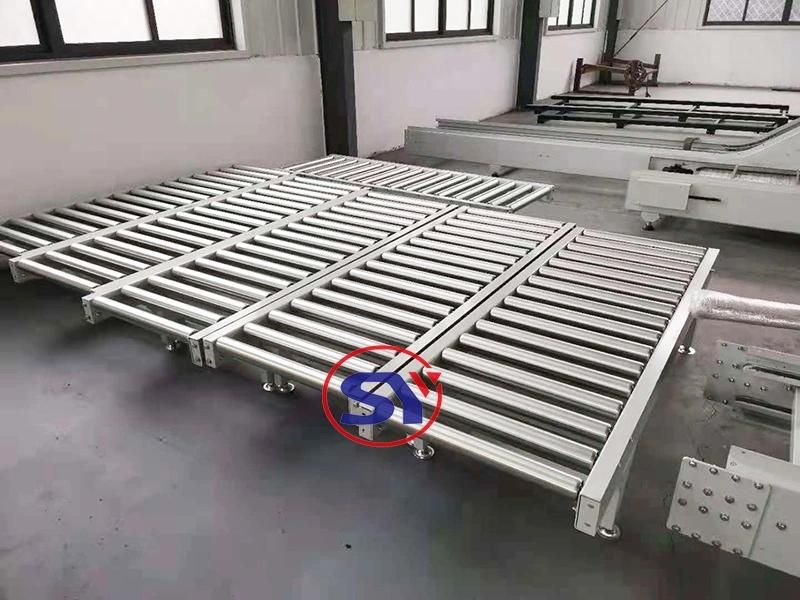

Air conditioning assembly roller conveyor gravity
Air conditioning assembly roller conveyor gravity
Air conditioning assembly roller conveyor gravity
★pipe roller conveyor system Brief Introduction
Applications for gravity/powered roller conveyor include:
-Transportation of products(boxes, bags, packages, parcels, trays,pallets etc)
-Loading and unloading of trucks
-Conveyance within picking areas
-Assembly or kitting areas
-Mounting to carts, scales or other industrial machinery
-Loading and unloading of manufacturing equipment
★pipe roller conveyor system compositions
It is mainly composed by the transmission roller, frame, bracket, driving device etc.
All of our roller conveyors can be manufactured in:
-Powder coated mild steel
-Stainless steel-BOTH 304 and 316
-Galvanised steel
-Aluminium (ultra light weight applications only)
The roller can be manuafacturered in:
-PVC
-Galvamized Steel
-PU Coated Steel
-Rubber Coated Steel
-Stainless steel304

★pipe roller conveyor system parameters

Driving form	unpowered, powered
Layout	linear conveying, incline conveying and turn conveying.
Turning radius	600mm,900mm,1200mm
Conveyor width	300mm,500mm,600mm,800mm,1000mm etc
Conveyor height	Customized
Roller diameter	38mm, 50mm, 60mm, 76mm, 89mm etc.
Roller pitch	Customized
Dynamic form	reduction motor driving, electric roller driving etc
Transmission form	single sprocket wheel, double sprocket wheel, O type belt, plane friction transmission belt, synchronous belt etc
Speed adjustment form	frequency control, stepless speed etc.

★More details of pipe roller conveyor system:
1,There are fixed feet and mobile wheels avaliable.
2,The rollers can be lower or higher or same height with the frame.★Features of pipe roller conveyor system
1.Simple structure, high reliability, convenience in operation and maintenance.
2.Large throughput, quick speed, running fast.
3.Realize many varieties of transmission of collineation and distributary.4.The mechanized and automatic loading&unloading operations improves the distribution efficiency, shorten logistics time, and reduces labor intensity.
 ★More photos of pipe roller conveyor system

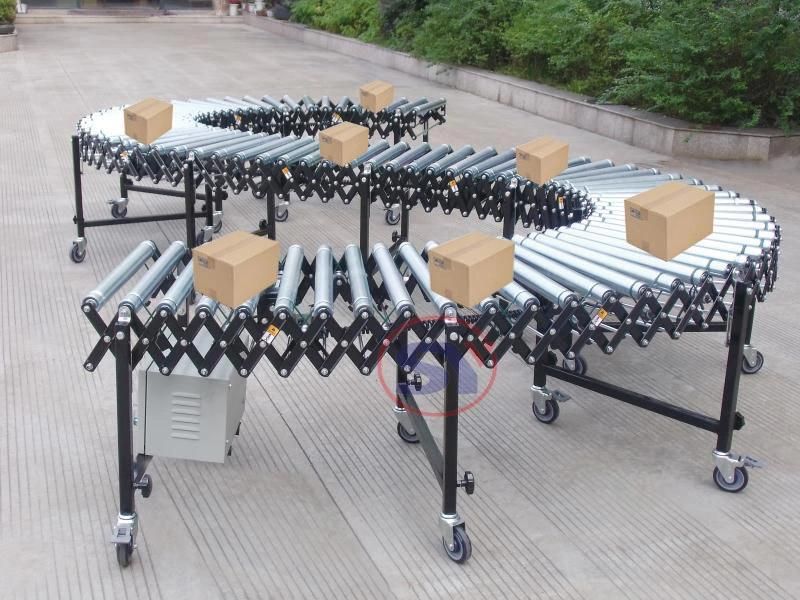

★There also have other telescopic roller table conveyor avaliable:

★gravity roller table conveyor system packing&Shipping:
-Generally packed in Plywood case or non-packed in one 20ft container if necessary.
-Shipment within 10~20 working days after the advance/full payment.
★FAQ:
1.Who We Are?
Zhengzhou Syoung Machinery Co.,Ltd combines designing,manufacturing and marketing conveying system for many years and has been proved to be worldwide customers, welcome in conveying industry.

2.Why Choose Us?
Novel designing concept,perfect conveyors in both quality and shape!
Customized conveyor solutions at competitive price!
Best on-time delivery, detailed installation and debugging instructions!

3.Could you quote me your standard conveyor?
All conveyors is non-standard equipment, please let me know below details to offer you the best price.
--Powered or unpowered
--Length, height, width of the conveyor
--Transported object unit weight
--Material of the conveyor, stainless steel or carbon steel or others

We also customize as your special requirements, such as adjustable speed, adjustable height etc.
★We can provide you single unit roller conveyor or conveyor line, if you are interested in roller conveyors, pls contact Rita for more info.
