Jaguar Manufacture SMT PCB Conveyor

Shenzhen Jaguar Automation Equipment Co., Ltd.
  • Material:Aluminium
  • Material Feature:Oil Resistant, Heat Resistant, Fire Resistant

Base Info

  • Model NO.:BC-350
  • Application:Grain Transport, Mining Transport
  • Condition:New
  • PCB Width:50~350mm
  • PCB Direction:L to R or R to L
  • Speed:0~10000mm,Min
  • Power Supply:1p AC220V 50,60Hz
  • Rail Length:Customizable
  • Transport Package:Wooden Box
  • Specification:CE, ISO
  • Trademark:Jaguar
  • Origin:China, Shenzhen
  • HS Code:8515800090
  • Production Capacity:100 Sets,Month
  • Package size per unit product:100.00cm * 80.00cm * 120.00cm
  • Gross weight per unit product:50.000kg

Description

Basic Info.

Model NO. BC-350 Application Grain Transport, Mining Transport Condition New PCB Width 50~350mm PCB Direction L to R or R to L Speed 0~10000mm/Min Power Supply 1p AC220V 50/60Hz Rail Length Customizable Transport Package Wooden Box Specification CE, ISO Trademark Jaguar Origin China, Shenzhen HS Code 8515800090 Production Capacity 100 Sets/Month

Packaging & Delivery

Package size per unit product 100.00cm * 80.00cm * 120.00cm Gross weight per unit product 50.000kg

Product Description

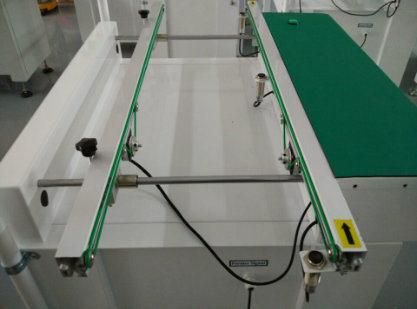

JAGUAR PCB Buffer Conveyor Machine for PCB Assembly
Jaguar Manufacture SMT PCB Conveyor
Jaguar Manufacture SMT PCB Conveyor
Features:1. Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.
2. Standard signal of industry for equipments, SMEMA can connect with others automatically on line.
3. Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.
4. Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.
5. When PCB move interposition during transmitting, it has the function of photo electricity automatic
inspection and manual releasing.
6. Increasing weight at the bottom to make machine uneasy to be moved, make connection more
smoothly.
Specification:
BrandJAGUAR
ModelJAGUAR-808 PCB Conveyor
Outer Dimension
(with inspection)
600*650*1800mm
PCB Width50~350mm
PCB DirectionL to R or R to L
Speed0~10000mm/min
Motor1P AC220V 50/60HZ 15W
Power Supply1P AC220V 50/60HZ
Rail lengthup to your request
Control SystemPLC
Foot switchstandard
LightingOption
SOP RackOption
Platform materialESD Rubber Mat
Communication plugSMEMA Signal plug for up & down line
WeightApprox.65Kg

Jaguar Manufacture SMT PCB ConveyorJaguar Manufacture SMT PCB ConveyorPackaging & Shipping

1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment  failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12months, in the guarantee period the supplier will free maintenance and replacement of quality caused by  the damaged parts.

Our Services

1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment  failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12months, in the guarantee period the supplier will free maintenance and replacement of quality caused by  the damaged parts.

 About Us
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China, we focus on SMT and THT Soldering technology more than a dozen years.
We are certified national high-tech enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.

Jaguar Manufacture SMT PCB Conveyor
 Our Factory
Shenzhen Jaguar Automation owns more than 12 years experience in automation equipment manufacturing,It's huge technical team owns more than 5-10 years of rich experience even in design and develop, or equipment manufacturing and process application technology.

Jaguar Manufacture SMT PCB Conveyor

Our production process, from raw material supply chain-warehouse management-mechanical assembly-electricity assembly-machine aging-macine function test-leave factory, the whole line  of production is according to ISO standard to operate, keep machine quality stable.
Jaguar Manufacture SMT PCB Conveyor


 FAQ

  1) This is the first time I use this kind of machine, is it easy to operate?

 There is english manual or guide video that show you how to use machine.

  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

  If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?

 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)

  A. Consult us about this product on line or by e-mail.

 B. Negotiate and confirm the final price , shipping , payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

 F.Send your order by air or by sea.

 5)Why choose us ?

 A. Gold supplier on MIC!

 B. Trade assurance to US$900,000 !

 C. Best price & Best shipping & Best service !
