• Model NO.：b107
• Roller Shaft：45# Cold Drawing Round Steel
• Belt Width：400~2600mm
• Features：Water-Proof and Dust-Proof
• Life Time：at Least 50000 Hours
• Warranty：12 Months
• Materials：Carbon Steel ,Stainless Stee
• Construction：Shef+Pipe+Bearing
• Applications：Chemical Industry, Grain Transportation, Mining Tr
• Colour：Black, Gray, Red, Blue and as Customer Request
• MOQ：100PCS
• Delivery：15-60days
• Port of Load：Qingdao Port China
• Transport Package：Standard Export Plywood Case
• Specification：63mm~219mm
• Trademark：ZHYL
• Origin：China
• HS Code：84313900
• Production Capacity：10000PCS,Week

Basic Info.

Model NO. b107 Roller Shaft 45# Cold Drawing Round Steel Belt Width 400~2600mm Features Water-Proof and Dust-Proof Life Time at Least 50000 Hours Warranty 12 Months Materials Carbon Steel /Stainless Stee Construction Shef+Pipe+Bearing Applications Chemical Industry, Grain Transportation, Mining Tr Colour Black, Gray, Red, Blue and as Customer Request MOQ 100PCS Delivery 15-60days Port of Load Qingdao Port China Transport Package Standard Export Plywood Case Specification 63mm~219mm Trademark ZHYL Origin China HS Code 84313900 Production Capacity 10000PCS/Week

Product Description

Qingdao Zhonghua Yongli New Material Co., Ltd.

Our company and Egypt International Conveyor Technology (Co., Ltd.) has completed the production of the first phase of the rubber conveyor belt manufacturing plant in Cairo New Industrial Park, The second phase of the project-conveyor belt expansion and the manufacture of motorcycle tires is being in construction.
Our products certificated on international and domestic standards such as Germany (DIN), Australia (AS), United Kingdom (BS), Japan (JIS), South Africa (SANS), the United States (RMA) and international standards (ISO) have been exported to Europe, Africa, Australia, Southeast Asia, Russia and Japan and South Korea and the Middle East
The company relying on Sinochem and Sinochem New Materials Testing Laboratory has strong technical and management strength and Strong R&D team, We can control and ensure the quality for our customers by using advanced laboratory equipment and testing methods in testing and control the raw materials, semi-finished products
We can produce all kinds of high-strength steel cord conveyor belting, Layered polyester nylon fabric core conveyor belting,Heat resistant belting, Abrasion resistant belting, Patterned belting, corrugated sidewall belting,bucket elevator conveyor belting, General flame retardant belting,whole core conveyor belting; various specific belting; rubber dam, farm animal rubber sheet and rubber Shaped parts products.

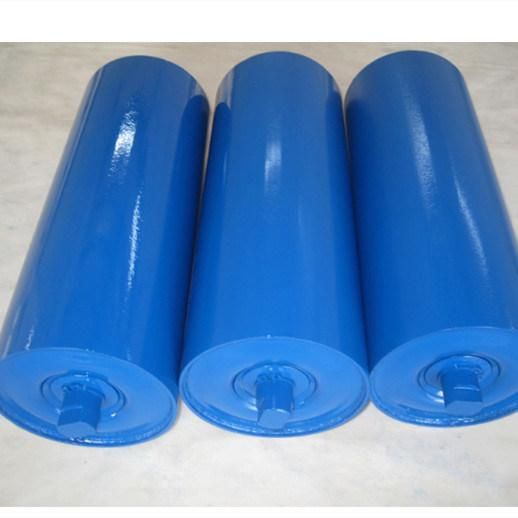

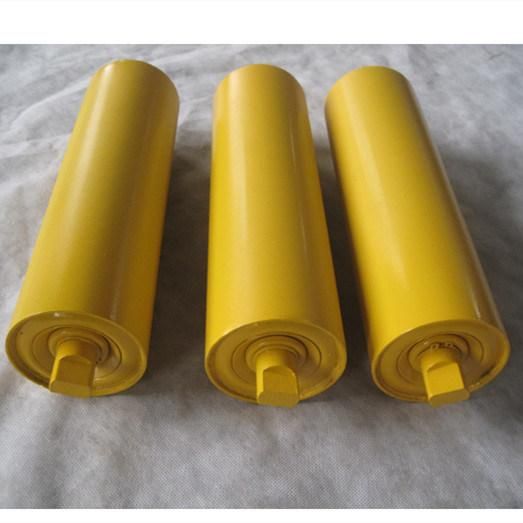

Product photo








Roller introduction:
High-sealing long-life rollerAs one of National Innovation Fund Project, LIBO idlers are of complete sealing
waterproof and dust-proof design, whose bearing assembly employs high-precision bearing chamber and
special bearings for idlers,  which provide fine appearance, low noise, free maintenance, long service life
(exceeding 50,000 hours) andhigh reliability. We invented controllable braking idlers, which can solve the
problem of controllable brake along the line of large downward belt conveyors

Types and Applications:
1.Flat/Carrier/Carrying Rollers: Used to handle bulk&unit material.
2.Impact Rollers: Installed at the loading point to absorb the shocks and to help protect against belt damage.
3.Return Rollers: Used to sustain and support the belt during its return section and performs a cleaning action
---Return rollers with Spaced Rings (Rubber Disc Rollers)
---Return Rollers with Helical Rubber Rings (Spiral Rollers)
4.Self-aligning/Training Rollers: Used to adjust the belt deviation, preventing hunting and ensuring stable operation of conveyor belt.
---Tapered self-aligning rollers
---Friction self-aligning rollers

Technical Parameter


Standard Diameter	Length scope(mm)	Bearings Type (Min-Max)	Idler's Shell Wall Thickness
63.5mm	150-3500	204	3.0mm-3.75mm
76mm	150-3500	204 205	3.0mm-4.0mm
89mm	150-350()	204 205	3.0min-4.0min
102mm	150-3500	204 205 305	3.5mm-4.0mm
108mm	150-3500	204 205 305 306	3.5min-4.0mm
114mm	150-3500	204 205 305 306	3.5mm-4.5mm
127mm	150-3500	204 205 305 306	3.5mm-4.5mm
133mm	150-3500	204 206 207 305 306	3.5mm-4.5mm
140mm	150-3500	204 206 207 305 306	3.5mm-4.5mm
152mm	150-3500	204 206 207 305 306 307 308	4.0mm-4.5mm
159mm	150-3500	204 206 207 305 306 307 308	4.0mm-4.5mm
165mm	150-3500	207 305 306 307 308	4.0mm-6.0mm
194mm	150-3500	207 307 308 309 310	4.5mm-6.0mm
219mm	150-3500	303 309 310	4.5mm-6.0mm
