1.5kw Motor Z Feeder Conveyor Elevator for Granule Products
Xinxiang Hengyu Machinery Equipment Co., Ltd.- Material:Stainless Steel
- Structure:Combined Chain
- Surface Treatment:Polishing
- Chain Size:1,2"*11,128"
- Feature:Fire Resistant, Oil Resistant, Heat Resistant
- Product Name:Bucket Conveyor Machine
Base Info
- Model NO.:ZT-2L
- Design:Z Type
- Hoist Height:as Request
- Good Sealing:Prevent Environmental Pollution
- Driven Type:Electric Motor
- Transport Package:Wooden Case
- Specification:500*750mm(BOX SIZE)
- Trademark:Hengyu
- Origin:Xinxiang, China
- HS Code:84283200
- Production Capacity:100 Sets Per Months
Description
Basic Info.
Model NO. ZT-2L Design Z Type Hoist Height as Request Good Sealing Prevent Environmental Pollution Driven Type Electric Motor Transport Package Wooden Case Specification 500*750mm(BOX SIZE) Trademark Hengyu Origin Xinxiang, China HS Code 84283200 Production Capacity 100 Sets Per MonthsProduct Description
Description of Z Bucket Conveyor Machine for Vertical Transport of GoodsZ Bucket Conveyor Machine is one of the most efficient ways to elevate bulk materials vertically. It consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. We manufactures a wide variety of bucket conveyor machine based on the characteristics of the bulk material and the process requirements.
Features of Z Bucket Conveyor Machine
1. Low driving power, inflow feeding, high-volume hopper
2. Efficiently avoid the accumulation of products and minimize the breakage of particles
3. Obvious features such as low power required, effective inflow feeding or guiding discharge
4. Easy erection and correct tensioning of chain
5. Electric automatic control, it can maintain a certain speed

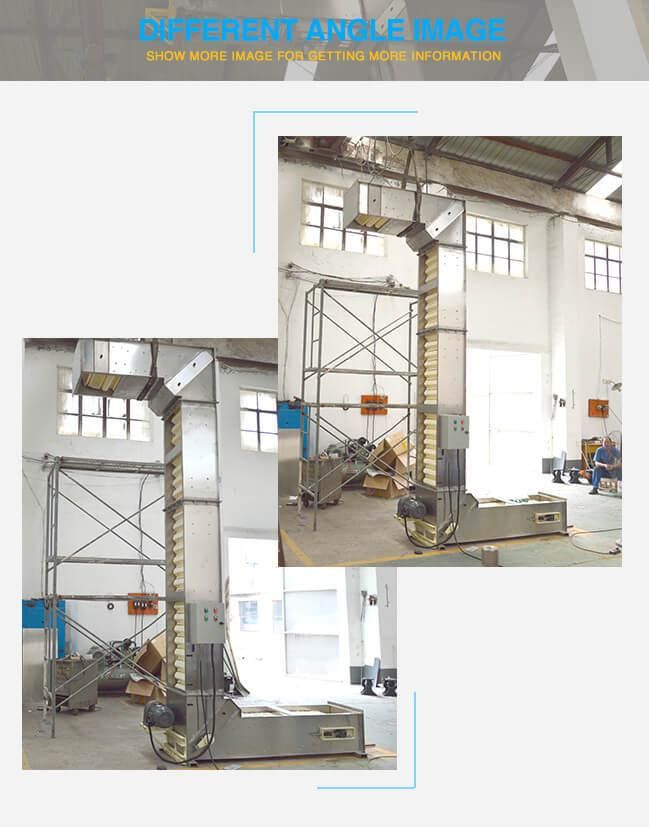

Z Bucket Conveyor Machine for reference
Technical Parameter:
Model | ZD-2L | ZD-5L |
Conveying Capacity | 0-6CBM/h | 0-12CBM/h |
Running Speed | 0.18meter/s | 0.18meter/s |
Capacity per Bucket | 2L | 5L |
Conveying Height | Customized | Customized |
Box Size | 400*600mm | 500*750mm |
Working principle of Z Bucket Conveyor Machine
The buckets carry the raw materials from the bottom of machine, and lift them to the top with the rotation of chain, turn down after by passing the wheel at the top and throw down the materials into the receiving tank. And the bucket elevator usually are enclosed which can prevent the dust flying in a mess in the bucket elevator.
Application of Z Bucket Conveyor Machine
It is designed for fast and convenient conveying of powders, they are used in leading processing plants for conveying dry powder or grain size materials.
How to get Z Bucket Conveyor Machine? Please send us the listed questions for getting quotation.
1. What's the material you are going to deal with
2. What are the physical characteristics of the material
Such as the size, temperature, density, moisture content etc
3. What's the producing capacity you are going to achieve
4. What is the lifting height of the elevator (distance between inlet and outlet)
If you are finding one set of Z Bucket Conveyor Machine, email us your requirements.
