• Model NO.：SYCP Chain Plate Conveyor
• Condition：New
• Chain Plate Material：Stainless Steel,Carbon Steel,Hot Plastic
• Frame Material：Stainless Steel,Carbon Steel
• Parameter：Customized
• Usage：Horizontal Conveying
• Straight Chain Plate Width：63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, 304.8
• Turn Chain Plate Width：82.5, 114.3, 152.4, 190.5, 304.8mm
• Chain Pitch：25.4 mm ~203.2 mm
• Plate Chain Conveyor Width：200 mm~800 mm
• Transportation Speed：0.4 M ~ 15 M,Min
• Height：Customized
• Length：Customized
• Working Temperature：-20deg ~ + 120deg
• Caster：Stationary,Movable
• Transport Package：Plywood Case
• Specification：stainless steel,plastic
• Trademark：No Brand
• Origin：China
• Production Capacity：2000pieces,Year

Basic Info.

Model NO. SYCP Chain Plate Conveyor Condition New Chain Plate Material Stainless Steel/Carbon Steel/Hot Plastic Frame Material Stainless Steel/Carbon Steel Parameter Customized Usage Horizontal Conveying Straight Chain Plate Width 63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, 304.8 Turn Chain Plate Width 82.5, 114.3, 152.4, 190.5, 304.8mm Chain Pitch 25.4 mm ~203.2 mm Plate Chain Conveyor Width 200 mm~800 mm Transportation Speed 0.4 M ~ 15 M/Min Height Customized Length Customized Working Temperature -20deg ~ + 120deg Caster Stationary/Movable Transport Package Plywood Case Specification stainless steel/plastic Trademark No Brand Origin China Production Capacity 2000pieces/Year

Product Description

2020 China Supply Bottle Labelling Scraper Chain Drag Conveyor (SYCP)

Scraper Chain Drag Conveyor  Application
Chain plate conveyor is widely used for automatic transmission, distribution and packaging in food, tin cans, drugs, beverage, cosmetics, cleaning products, paper products, spices, dairy and tobacco.

Chain plate specifications
Straight chain plate width can be 63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, 304.8; Turn chain plate width can be 82.5, 114.3, 152.4, 190.5, 304.8.

Scraper Chain Drag Conveyor  Technology Parameters
Chain pitch: 25.4 mm ~203.2 mm;
Plate chain conveyor width: 200 mm~800 mm (width >800 mm, it can use double plate chains);
Transportation speed: 0.4 m ~ 15 m/Min;
Maximum weight of goods: 800 kg/m2;
Metal plate chain working environment temperature:-20 °C ~ + 120 °C.

Scraper Chain Drag Conveyor Pictures



Chain plate material:carbon steel, stainless steel, hot plastic chain etc.

Production Process

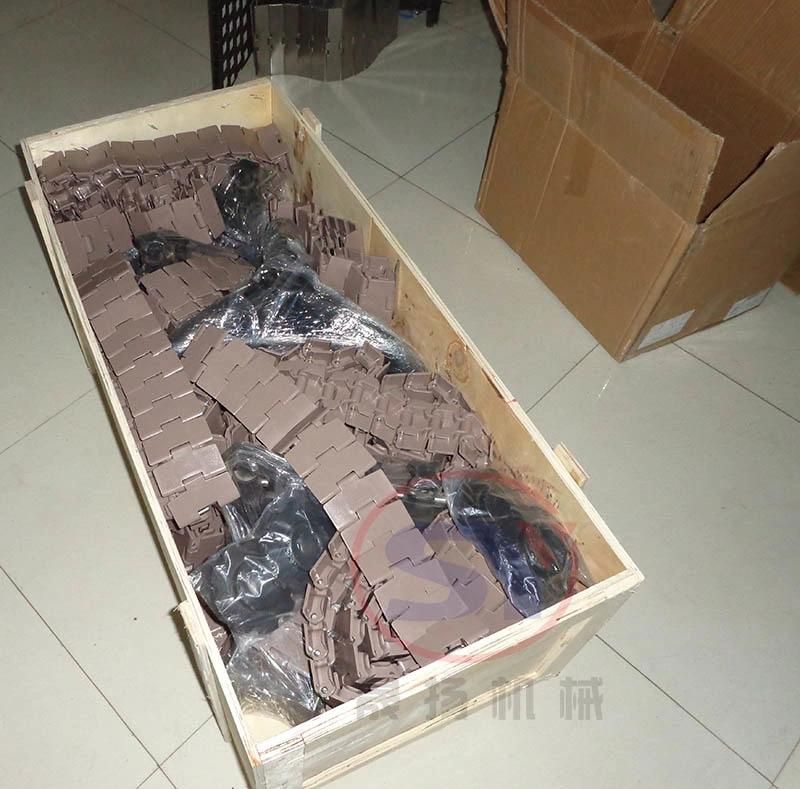

Packaging & Shipping
1. Generally packed in Plywood case;
2. Shipment within 10~20 working days after the advance/full payment.

This type conveyor can be customized according to your requirements, please feel free to contact us.

About Us
Zhengzhou Syoung Machinery Co., Ltd. is specialized in manufacturing and exporting transmission conveyors and equipment for decades.
All kinds of conveyors such as roller conveyor, belt conveyor, chain conveyor, wire mesh conveyor, screw conveyor, flexible conveyors are supplied to satisfy your different transmission demands.
We have professional technical engineer team, who have more than 20 years experience in transmission conveyor solutions for different fields.
Be your best and professional transmission solution partner is our pursue.

Our Service
1. Project Design
Offer best transmission conveyor solutions according to customers' demands.
2. Response within 24hour
Inquiries, questions and messages from customers will be responded within 24 hours.
3. Installation Training
Provide all-sided equipment installation guidance include but not limited to offer installation instructions, telephone guidance, help to train customers' workers through video session or site instruction.
4. After-sale service
24 hours online for technical consulting service, one year warranty, life-long maintenance; long-term technical support.

If you are interested in this product, please feel free to contact Ms. Sharon, Thanks.
