Powder Coating Production /Manufacturing/Making Air/Water Cooled Cooling Belt

Dongsun Powder Processing Equipment Co., Ltd.
  • After-sales Service:Available
  • Warranty:One Year
  • Structure:Belt Conveyor
  • Material:Stainless Steel
  • Roller Dia.:220-622
  • Belt Width:400-1200

Base Info

  • Model NO.:TOPSUN
  • Belt Length:2000-7000
  • Drive Motor:1.5-5.5
  • Throughput:30-1200kg,H
  • Cooling Mode:Air, Cooled Water
  • Transport Package:Pallet
  • Trademark:TOPSUN
  • Origin:China
  • HS Code:8477
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. TOPSUN Belt Length 2000-7000 Drive Motor 1.5-5.5 Throughput 30-1200kg/H Cooling Mode Air, Cooled Water Transport Package Pallet Trademark TOPSUN Origin China HS Code 8477 Production Capacity 5 Sets/Month

Product Description

Water Cooled Cooling Belt with Flaker:

Features:

Consistent quality imported steel belt

Bottom cooling water spraying system, installed heating and cooling device

Equipped with guide device to avoid deforming

Better cooling result, higher efficient productivity

Few maintenance and easy cleaning

Chips thickness and roller speed adjustable

Crusher with finger pin and teeth type

Minimized cross contamination, simple operation


Technical Parameters:

ModelRoller Dia. (mm)Belt Width (mm)Belt Length (mm)Drive Motor (kw)Capacity (kg/h)Cooling ModeOverall Dimensions (mm)
GDY-40622060040001.5200-400Cooled Water4000*750*1600
GDY-50832580050003400-500Cooled Water5000*900*1800
GDY-510325100050003500-700Cooled Water5000*1100*1900
GDY-610440100060004600-800Cooled Water6000*1100*1900
GDY-612440120060004700-900Cooled Water6000*1400*1900
GDY-712600100070005.5900-1200Cooled Water7000*1400*2000




Powder Coating Production /Manufacturing/Making Air/Water Cooled Cooling Belt

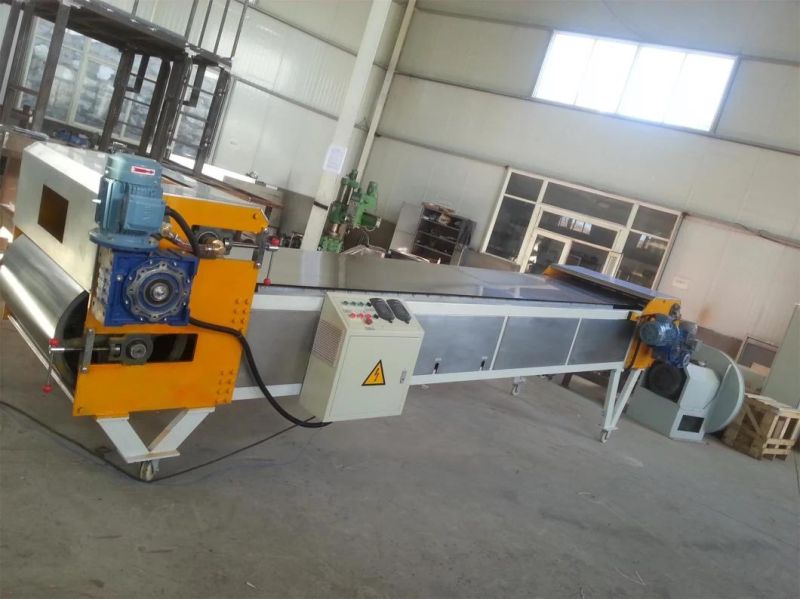

Air Cooled Type  Cooling Belt with Flaker:

Features:

Stainless steel made , air cooling

Flake chips thichness and conveying speed adjustable

Reasonable design for cooling rollers inside, professional surface treatment to avoid water leaking and rust

Installed with simplified air conditioning device

Safe operation, like emergency button, clockwise and counter-clockwise rotation.


Technical Parameters:

ModelRoller Dia. (mm)Belt Width (mm)Belt Length (mm) Drive Motor (kw)Blower Motor (kw)Capacity (kg/h)Cooling ModeOverall Dimensions (mm)
JFY-204 160/16040020000.55200-40030-100Chilled Water&Air2000*450*900
JFY-406160/22060040000.75400-500100-220Chilled Water&Air4000*850*950
JFY-508180/32570050000.75500-700220-400Chilled Water&Air5000*1050*1200
JFY-510180/32580050001.1600-800400-500Chilled Water&Air5000*1150*1200
JFY-610180/32580060001.1700-900500-700Chilled Water&Air6000*1150*1200
JFY-710180/325100060001.5900-1200600-900Chilled Water&Air7000*1250*1450
JFY-812180/325100070002.2900-1200900-1200Chilled Water&Air8000*1650*1600

Powder Coating Production /Manufacturing/Making Air/Water Cooled Cooling Belt

PU Type Air Cooled Cooling Belt


Features:

Adjustable thichness and roller speed

Air cooled to avoid cross contamination

Roller and crusher equipped with overload protection


High efficiencies

One piece PU belt to faciliate easy cleaning and maintenance

Compact design for limited space


Technical Parameters:

ModelRoll Dia. (mm)Band Width (mm)Band Length (mm)Motor Power (kw)Throughput (kg/h)Dimensions (mm)
PFY-10415640010001.1501000*870*1050
PFY-20622060020001.11502000*1150*1100
PFY-20844580020002.23002000*1100*1100
PFY-210445100020002.25002000*1300*1100
PFY-310622100030002.28002000*1300*1200

Powder Coating Production /Manufacturing/Making Air/Water Cooled Cooling Belt
Company:

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistant quality, effective communication, responsible service.
