Conveyor & Parts

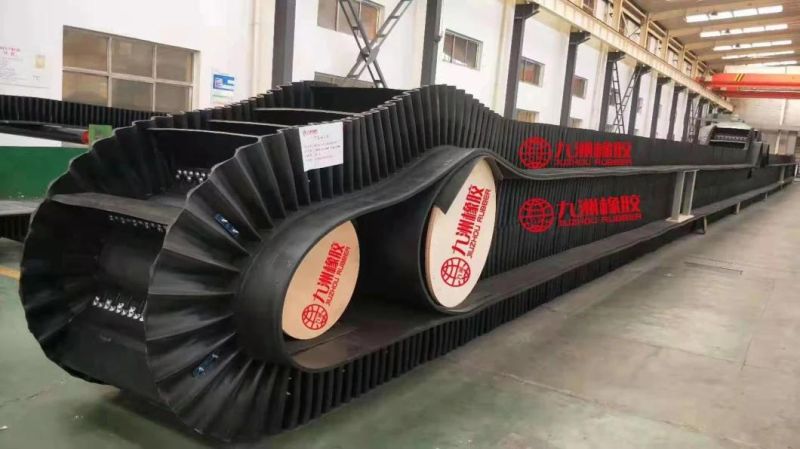

Corrugated Sidewall Conveyor Belt

Hebei Jiuzhou Rubber Technology Co., Ltd.
  • Type:Corrugated Sidewall Conveyor Belt
  • Material:Rubber
  • Inside Material:Polyester
  • Feature:Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
  • Tensile Strength:Strong
  • Transport Package:Standard Packing

Base Info

  • Model NO.:EP100~EP400, NN100~NN400 etc
  • Specification:GB, DIN, RMA, ISO, AS, SABS, BS
  • Trademark:JIUZHOU
  • Origin:Baoding City, Hebei, China
  • HS Code:40101200
  • Production Capacity:1000 Meter Per Day

Description

Basic Info.

Model NO. EP100~EP400, NN100~NN400 etc Specification GB, DIN, RMA, ISO, AS, SABS, BS Trademark JIUZHOU Origin Baoding City, Hebei, China HS Code 40101200 Production Capacity 1000 Meter Per Day

Product Description

Structure
Four parts: Top cover rubber; Bottom cover rubber; Reinforced core; Cross rigid.
Min top cover thickness: 3 mm;
Min bottom cover thickness: 1.5 mm.
Belt carcass ( casing ply): EP, Cotton, Nylon Steel Cord

Characteristcis:
1) Conveying angle 30~90ºC
2) Smaller area covering;

3) Bigger throughput, higher hoisting height;
4) Smooth transition from horizontal to tilt or vertical;
5) Saving time
6) Strong conveying capacity

Cleat:
Cleat types: T, TC
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"T" cleat are normally used up to 40 degree
"TC"  normally used from 0 degree to 90


Classify by constructure:
1) Conventional type
2) Transverse reinforcement type: XE, XE+2, XE-SC+2 etc

Standard: GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc


Application:
Suitable for conveying easy sifted materilas in powder, granulated and small lump, paste and liquid, widely used in loading and unloading transportation systems such as ore mine, coal mine, stations and wharf to conveying materials in shape of lump, partials, and powders, etc.


Why choose us?
1. High level of choosing upstream supplier: like carcass, Wuxi Taiji being our strategic partner supplying qualified fabric.
    All raw materials purchase is accompanied with quality test certificate.
2. Strict QC system over the whole process of production: raw materials - semi-finished product - finished product
    Every one step of semi-finished product shall be tested before next step of processing. Unqualified pieces are now allowed for next step of processing.
3. All finished products shall get tested, and only qualified products can leave factory.
