Conveyor & Parts

Conveyor Roller for Mine/Port/Cement/Concrete Plant/Power Plant

Rizhao Port Shipbuilding & Machinery Industry Co., Ltd.
  • Material:Carbon Steel
  • Surface Treatment:Painting
  • Motor Type:Frequency Control Motor
  • Installation:Horizontal
  • Place of Origin:Shandong, China (Mainland)
  • Brand Name:SPD

Base Info

  • Model NO.:diamater 63.5mm-219mm
  • Roller Diameter:76-219mm
  • Roller Length:190mm to 3500mm
  • Roller Tube:Q235 Carbon Steel
  • Shaft:Q235 Carbon Steel
  • Bearing:Single and Double Row Deep Groove Ball Bearing 2rz
  • Bearing Brand:SKF, FAG, NSK, Lyc etc.
  • Finish:Painting,Rubber,Steel Screew,Galvanized
  • Welding:Mixed Gas Shielded Arc Welding End
  • Transport Package:Standard Export Plywood Cases
  • Specification:SPD-Australia standard-114-224mm-6204
  • Trademark:SPD
  • Origin:Rizhao City, Shandong Province, China
  • HS Code:84313900
  • Production Capacity:600piece,Day

Description

Standard DiameterLength scope ( mm)Bearings Type
(Min~Max)Idler's Shell Wall ThicknessmmInch63.52 1/2150~35002043.0mm~3.75mm763150~3500204 2053.0mm~4.0mm893 1/3150~3500204 2053.0mm~4.0mm1024150~3500204 205 3053.5mm~4.0mm1084 1/4150~3500204 205 305 3063.5mm~4.0mm1144 1/2150~3500205 206 305 3063.5mm~4.5mm1275150~3500204 205 305 3063.5mm~4.5mm1335 1/4150~3500205 206 207 305 3063.5mm~4.5mm1405 1/2150~3500205 206 207 305 3063.5mm~4.5mm1526150~3500205 206 207 305 306 307 3084.0mm~4.5mm1596 1/4150~3500205 206 207 305 306 307 3084.0mm~4.5mm1656 1/2150~3500207 305 306 307 3084.5mm~6.0mm177.87150~3500207 306 307 308 3094.5mm~6.0mm190.77 1/2150~3500207 306 307 308 3094.5mm~6.0mm1947 5/8150~3500207 307 308 309 3104.5mm~6.0mm2198 5/8150~3500308 309 3104.5mm~6.0mm

Main Features of SPD Belt Conveyor Steel Roller,Trough Roller,Carry Roller

  • The bearing housing and steel tube are assembled  and welded  with a concentric automatic, welding machine.
  •  Cuting of the steel tube and bearing is performed     with the use of a digital aute device/machine/equipment.
  •  Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
  •  Roller and supporting components/materials are   manufactured to ISO/BS/JIS/DIN//CEMA/Australia etc. standard.


Conveyor Roller for Mine/Port/Cement/Concrete Plant/Power Plant


Cutting equipment
numberical control cutter machinesemi- manual cutter machines.

Forming equipment
300T friction punching machine160T punching machinemechanical plate shearing machine.

Plate roll equipment
hydraulic four rolles plate roll equipmentmechanical three rolles plate roll equipment.

Welding equipment
union melt welding, argon arc welding machinecarbon dioxide protection welding machineAC arc welding machine, direct current arc welding machine.

Test and MeasureInstruments: PaintFilmThickness Gauge, Buluowei hardness machine, Theodolite Magnetic Particle Flaw DetectorMetal gage, Ultrasonic Flaw Detector.

Heat treatment
electric furnace
carburizing furnace.

paint shop facilities
pneumatic
paint shop facilityhigh- pressure paint shop
facility.

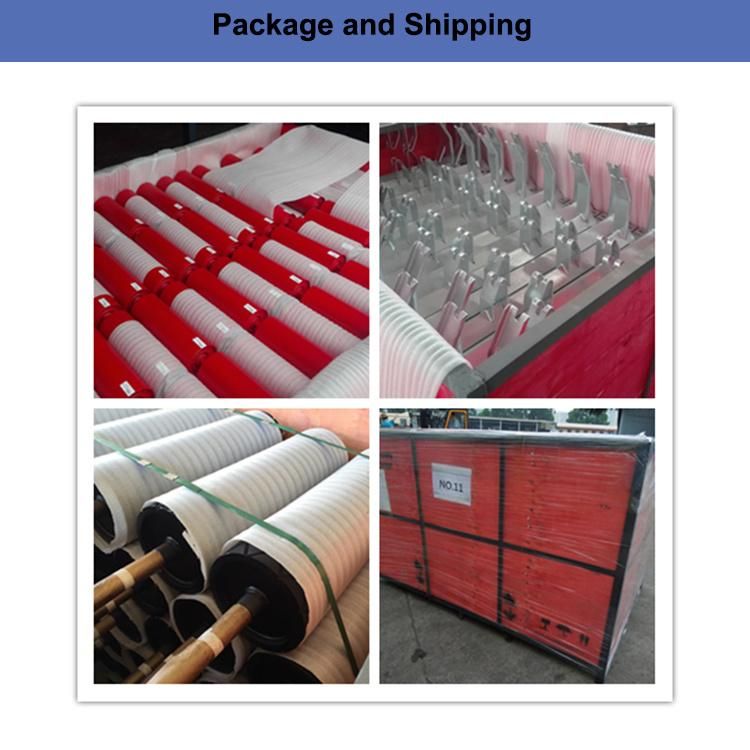

Package and Shipping
Conveyor Roller for Mine/Port/Cement/Concrete Plant/Power Plant


Customer Visit from Different Countries
Conveyor Roller for Mine/Port/Cement/Concrete Plant/Power Plant

About Rizhao Port Machine Engineering Co., Ltd.


SPD famous Conveyor Roller brand, 301 - 500 workers25000 m³non-dust workshop, Registered Capital: RMB 69,000,00020years experience, 35 Engineers and technicians , 28 Professional designers, 7 Senior engineers,18 engineers, two hours to Qingdao port.
Samples are acceptable. Rush order and large quantity are acceptable.

RZPMC is a comprehensive enterprise which engages in design, manufacture, installation and maintenance of the bulk-handling equipments. It is the wholly-owned subsidiary of the listed governmental company Rizhao port Co., Ltd.
The main products are belt conveyor, stacker-reclaimer machine, car loader machine, un-loader machine, etc. We begin to make belt conveyor from the year 1993, and has lots of large contracts of manufactures and installation projects widely used in ports, mining, food, power plants and other industries. Our steel structures and frames production capacity is 160, 000 tons/year. In the year of 2005, we rely on our own technological superiority, self-design and manufacture the storage capacity of 9000 T/H of the stocker, as a national origination

Brand SPD
Specification SPD-Australia standard-114-224mm-6204
CertificateISO/BV/SGS
StandardCEMA/JIS/DIN/Australia
ApplicationCoal mining industry, cement, steel, harbour etc.
Place of Origin Rizhao City , Shandong Province , China
Material FeatureWater, Wear, Dust resistance
Supply capacity 600pcs/day
Management system ISO 9001:2008,ISO 14001:2004,GB/T 28001-2001

FAQ

1.Q: Your bearing type and brand usually use?
 A: Large clearance C3 ZZ type deep ball bearing with LYC, S KF, F AG, NSK, etc. According to customer's requirements.
2.Q: How is your Payment Term?
A: T/T or L/C. Another payment term we can also discuss.
3.Q: Can you customize it?
A: We support customization according to your request.
4.Q: What's the MOQ?
A: 1 piece.
5.Q: What's the production capacity of your idler and belt conveyor?

A: Idlers 200,000 pcs/year.
6.Q: What's your roller's lifespan?
A: Our rollers have a long lifespan with good performance and usually make sure 30000 to 50000 hours under the normal site and operation.
