Conveyor & Parts

Factory Conveyor Roller Making Machine Roller Welding Machine for Sale

DEZHOU YILUN CONVEYING MACHINERY CO., LTD.
  • After-sales Service:24 Hourse Online After Sale
  • Warranty:1 Year
  • Structure:Roller Making Machine
  • Material:Carbon Steel
  • Material Feature:No
  • Application:Mining Transport, Conveyor Line

Base Info

  • Model NO.:JG-850
  • Condition:New
  • Can Be Cut Pipe Diameter:50-219
  • Cut Pipe Length:100-2500
  • Voltage:380V, 415V, 220V
  • Dimension(Lxwxh):3920*800*1000mm
  • Machine Center Height:850mm
  • Product Name:Factory Conveyor Roller Making Machine Roller Weld
  • Transport Package:Wooden Box
  • Specification:Iron
  • Trademark:YILUN
  • Origin:Shandong, China
  • HS Code:8515319100
  • Production Capacity:14unit,Month

Description

Basic Info.

Model NO. JG-850 Condition New Can Be Cut Pipe Diameter 50-219 Cut Pipe Length 100-2500 Voltage 380V, 415V, 220V Dimension(Lxwxh) 3920*800*1000mm Machine Center Height 850mm Product Name Factory Conveyor Roller Making Machine Roller Weld Transport Package Wooden Box Specification Iron Trademark YILUN Origin Shandong, China HS Code 8515319100 Production Capacity 14unit/Month

Product Description

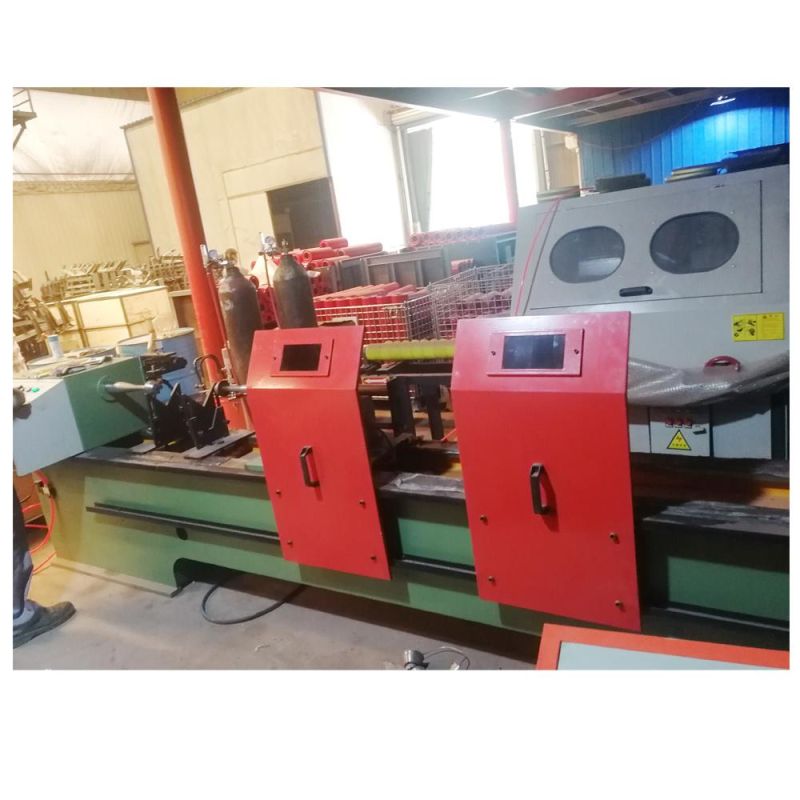

Factory Conveyor Roller Making Machine Roller Welding Machine For Sale
Factory Conveyor Roller Making Machine Roller Welding Machine for Sale

This machine is
Used for the inside and outside girth weld of the roller bearing housing
Two sets of
CO2/MAG welding devices are equipped for the simultaneous girth welding at both ends with high welding efficiency

The workpiece can be positioned,fixed,welded and repositioned automatically

Machine center height850mm
Electric welding machine Power Input380v/50Hz, Three Phase
Rated capacity50KVA
Electric welding machine rated output current350A
Spindle motor powerDc deceleration motor 230W / 110V
Applicable welding wireDiameter 0.8,1.0,1.2mm
shielded gas flow10-25L/min
weldable workpiece length200-2200mm
weldable workpiece diameter60-159mm
Weld rotation speed0-10r/min
dimension ( LxWxH)3920*800*1000mm

Workking process:

Factory Conveyor Roller Making Machine Roller Welding Machine for Sale
Factory Conveyor Roller Making Machine Roller Welding Machine for Sale
Factory Conveyor Roller Making Machine Roller Welding Machine for SaleCustomer visiting
Factory Conveyor Roller Making Machine Roller Welding Machine for SaleFactory Conveyor Roller Making Machine Roller Welding Machine for Sale



Packing and loading container:
Factory Conveyor Roller Making Machine Roller Welding Machine for SaleFactory Conveyor Roller Making Machine Roller Welding Machine for Sale
7.Company introduction
 1.)Dezhou Yilun conveying Machinery Co.,Ltd was founded in 2005.
 2.)It's registered capital is 11.68million CNY and It is private joint-stock enterprise. Our main products are  cnoveyor roller,idler,frame, pulley,belt and belt conveyor system for TD75 ,DTII,DTIIA,CEMA ects.
3.)we has large lathes, numerical control, double pressing machine, double welding machine, double boring  lathe, milling machine, sawing machine and so on. The products have gained various patents. We can produce more than one thousand rollers and ten pulleys per day.
4.)We have the professionalQC dept. to keep the good quality before the  goods sent out.
    The products are sold to Middle East,Africa ,Australia,Europe,Southeast Asia,Russia and some other countries  and regions. We will Strengthen the inner management and improve our products' quality constantly.
   We will offer the best products for customers from the beginning to the end.

8.FAQ

1.Q: Your bearing type and brand usually use?
 A:Large clearance C3 ZZ type deep ball bearing withSRB, and according to customer's requirements.

2.Q: How is your Payment Term?
A: T/T or L/C. Another payment term we can also discuss.

3.Q: Can you customize it?
A: We support
customization according to your request.

4.Q: What's the MOQ?
A: 50 piece.

5.Q: What's the production capacity of your conveyor roller?
1500 pcs/day.

6.Q: What's your roller's lifetime?
Our rollers have a long lifetime with good performance and usually
make sure 30000 to 50000 hours under the normal site and operation.
